Apollo 9 images
Apollo 9 crew portrait

For the offical crew portrait photos taken before the launch the Apollo 9 crew wore full Apollo spacesuits but in place of betacloth patches they had embroidered mission patches loosely fixed in place.

The best-known of the official crew portraits, shown to the right, is S69-17590.

Fortunately, very high res versions of this photo are available which allow us to see which patch they were wearing.

Apollo 9 patches on space suits

The patches are clearly visible in the detailed images on the right.

Note the distinctive font used (particularly the "S"s) and the wide separation of the CSM and LM.

As with Apollos 7 and 8, when the Apollo 9 crew came on board the U.S.S. Guadalcanal from the rescovery helicopter they were wearing their betacloth overalls complete with betacloth crew emblems, but they did change into regular blue jumpsuits shortly afterwards and these had embroidered patches attached.

Patches worn by Apollo 9 crew on recovery ship

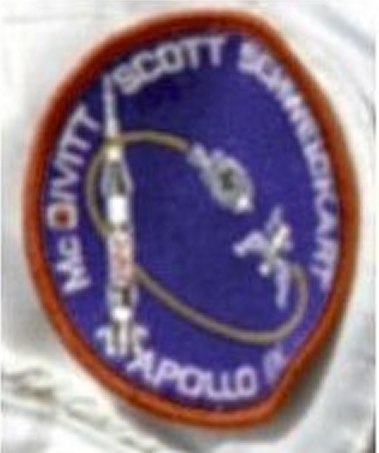

On the right are detailed closeups from two photos that show the patches on the jumpsuits on the recovery ship.

Although the lettering is not clear, the details of the design, especially the gap between the CSM and LM and the shape of the Saturn V rocket, appear to match those of the patch in the pre-flight portrait photo above.

This patch, worn by the crew on their spacesuits for the official crew portrait, and on their post-flight jumpsuits, is the one we refer to as the Apollo 9 Crew Patch.

A variant of the Crew Patch exists which has small but noticeable differences in execution (detailed in the individual patch entries below).

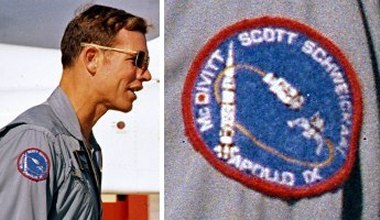

The photo on the left (courtesy of RetroSpaceImages) shows Dave Scott wearing an example of this Crew Patch variant on one of his flight suits a few days before the Apollo 15 flight.

Rusty Schweickart also wore this variant on one of his flight suits on the U.S.S. Guadalcanal after the Apollo 15 recovery, and examples of this variant were carried on the mission as souvenirs alongside the other version of the crew patch.

To further complicate matters, according to James McDivitt the crew returned a delivery of patches that were intended to be flown because they lacked the red "D".

What may be an example of this first version of the crew patch can be seen here. Apart from the lack of red thread in the "D" this patch matches the regular Crew Patch perfectly. A 'red-less D' example of the crew patch variant has also been found as shown here. Again, part from the lack of red thread in the "D" this patch matches the Crew Patch variant perfectly.

There also exist some versions of the Crew Patch variant which seem to be more crudely executed, and perhaps even fractionally smaller in diameter (by a millimeter or two), as can be seen here. It may be that these are pre-production samples of the variant.

Because the similarities between these crew patch variants far outweigh the differences, my feeling at present is that they represent examples of different manufacturing runs of the same patch, although the existence of 'red-less D' versions of both variants is difficult to explain.

The Crew Patches

Patch id:

Apollo 9 Crew Patch

Worn by crew? Yes. Worn by the crew for their pre-flight portrait and on their post-flight jumpsuits. Apollo 9 crew patch
Flown? Yes. Roughly a quarter of all mission-flown embroidered patches are of this kind.
Manufacturer: Unknown.
Distribution: Unknown, but apparently very limited.
Dimensions: 3¼" / 84mm
Type: Fully embroidered. Merrowed edge with 'tail'.
Scarcity: Very rare. Perhaps 1 to 3 examples sold per year.
Value: Unflown examples of this patch have sold in recent years for between $160 and 255[1].
Notes: The Crew Patch and its variant have distinctive square-cornered text. Unlike the variant this version has a distinctly angled engine bell at the rear of the Command & Service Modules.
Patch id:

Apollo 9 Crew Patch Variant

Worn by crew? Yes. Worn by at least Rusty Schweickart on one of his flight suits after the recovery. Apollo 9 crew patch variant
Flown? Yes. Roughly a quarter of all mission-flown embroidered patches are of this kind.
Manufacturer: Unknown.
Distribution: Unknown, but apparently very limited.
Dimensions: 3¼" / 84mm
Type: Fully embroidered. Merrowed edge with 'tail'.
Scarcity: Rare. Up to 6 examples sold per year.
Value: Unflown examples of this patch have sold in recent years for between $67 and $490[2].
Notes:

Very similar to the Crew Patch version above but this variant has neater stitching on the spacecraft and a larger engine bell at the rear of the Command & Service Modules that touches the yellow thread behind it. The black detailing on the Saturn V rocket is also neater on this version and the escape tower ends further away from the "S" of "SCOTT".

These details can be seen in this photo on the flight suit of Rusty Schweickart on the recovery ship U.S.S. Guadalcanal.

Patch id:

Apollo 9 Crew Souvenir Patch

[was AS9UNK1]
Worn by crew? No. Apollo 9 crew souvenir patch
Flown? Yes. Roughly half of all mission-flown embroidered patches are of this kind.
Manufacturer: Unknown.
Distribution: Unknown, but apparently very limited.
Dimensions: 3½" / 87mm
Type: Partially embroidered on blue twill. Merrowed edge with 'tail'.
Scarcity: Very rare. Perhaps 2 to 3 examples sold per year.
Value: Unflown examples of this patch have sold in recent years for between $90 and 400[3].
Notes: Apart from the different font and the twill background, the easiest way to tell this from the crew version is that the escape tower on the Saturn V points to the "S" of Scott in this version.

Other Embroidered Mission Patches

Patch id:

AB Emblem patch

Worn by crew? No. AB Emblem Apollo 9 patch
Flown? No.
Manufacturer: AB Emblem
Distribution: Sold as souvenirs.
Dimensions: 4" / 101mm
Type: Fully embroidered. Merrowed edge with 'tail'.
Scarcity: Uncommon in bare cloth back form.
Value: Bare cloth back examples sell for maybe $5-15.
Notes: The rather crude AB Emblem version of the Apollo 9 patch is easily recognised by the short and squat Saturn V rocket.
Patch id:

Lion Brothers patch

Worn by crew? No. Lion Brothers Apollo 9 patch
Flown? No.
Manufacturer: Lion Brothers
Distribution: Was available commercially.
Dimensions: 3½" / 89mm
Type: Partially embroidered on blue twill. Merrowed edge without 'tail' (selvedged).
Scarcity: Scarce.
Value: Examples sell for around $15-30.
Notes: The Lion Brothers patch has a similar appearance to the Crew Souvenir patch. The most obvious difference is that this version has the CSM and LEM touching. Note that a rare plastic backed prototype version of this patch exists.
Patch id:

AB Emblem yellow border "Kirk Edge" patch

Worn by crew? No. AB Emblem yellow border Apollo 9 patch
Flown? No.
Manufacturer: AB Emblem
Distribution: Unknown
Dimensions: 4" / 101mm
Type: Fully embroidered. Merrowed edge with 'tail'.
Scarcity: Rare
Value: Unknown.[4]
Notes: This patch is apparently identical to the standard AB Emblem version except for the striking yellow border.

Although I had originally suspected a manufacturing error as the origin of these patches it seems more likely that these are actually "Kirk Edge" patches - unfinished factory reject patches acquired by the late Bob Kirk to which he added merrowed borders of a distinctly different color to the original design. As such these patches have little value except as curiosities.

Patch id:

Texas Art Embroidery patch

Worn by crew? No. Texas Art Embroidery Apollo 9 patch
Flown? No.
Manufacturer: Texas Art Embroidery
Distribution: Unknown.
Dimensions: 4" / 102mm
Type: Fully embroidered. Merrowed edge without 'tail' (selvedged).
Scarcity: Extremely rare. Only two examples sold in last few years.
Value: Examples have sold for between $340 and $1101[5].
Notes: This striking design is easily recognized due to its size and quality, plus the lack of red fill in the "D" of McDivitt.
Patch id:

Space Spin-Off Ltd. patch

Worn by crew? No. Space Spin-Off Ltd Apollo 9 patch
Flown? No.
Manufacturer: Space Spin-Off Ltd.
Distribution: UK mail-in offer
Dimensions: 3¾" / 97mm
Type: Partially embroidered on blue cloth. Stitched border, cut edge.
Scarcity: Rare
Value: An example sold recently for $45[6]
Notes: This patch was offered to readers of Look-in magazine and Countdown magazine in the UK in February 1972, and was part of a set manufactured by Space Spin-Off Ltd. The design appears to be based on the AB Emblem patch, but executed on thin blue cloth (not twill) with a cut edge.
Patch id:

[AS9UNK2]

Worn by crew? No. Apollo 9 AS9UNK2 patch
Flown? No.
Manufacturer: Unknown
Distribution: Unknown
Dimensions: 4" / 102mm
Type: Partially embroidered on blue twill. Merrowed edge without 'tail' (selvedged).
Scarcity: Scarce
Value: Unknown
Notes: Although superficially similar to the AB Emblem design, especially in terms of the Saturn rocket, this patch is partially embroidered on twill. The artwork and execution is pretty crude, particualrly the Lunar Module.
The manufacturer is unknown but this patch was first identified alongside examples of AS10UNK2, AS11UNK9 and AS12UNK8, implying a likely common manufacturer.
Patch id:

Crew Patches replica

Worn by crew? No. Crew Patches Apollo 9 replica patch
Flown? No.
Manufacturer: AB Emblem
Distribution: Available exclusively from my Crew Patches store.
Dimensions: 3¼" / 85mm
Type: Fully embroidered. Merrowed edge with tail.
Scarcity: Small production run
Value: On sale at $12
Notes: This is a high quality replica of the rare Apollo 9 crew patch, produced for me by AB Emblem in early 2014.

These patches are not available via regular retail outlets, or from AB Emblem directly. If you want to purchase one or more of these patches please go to the Crew Patches Store page.

3" Embroidered Mission Patches

Patch id:

AB Emblem 3" souvenir patch

Worn by crew? No. AB Emblem 3 inch Apollo 9 patch
Flown? No.
Manufacturer: AB Emblem
Distribution: Sold as souvenirs
Dimensions: 3" / 78mm
Type: Partially embroidered on blue twill. Merrowed edge with tail.
Scarcity: Common
Value: Minimal value
Notes: This is the AB Emblem small souvenir (3") version of the mission patch.
Patch id:

Cape Kennedy Medals 3" patch

Worn by crew? No. Cape Kennedy Medals 3 inch Apollo 9 patch
Flown? No.
Manufacturer: Cape Kennedy Medals.
Distribution: Unknown.
Dimensions: 3⅛" / 80mm
Type: Fully embroidered. Merrowed edge with 'tail'.
Scarcity: Scarce.
Value: An example sold recently for $23.50[7].
Notes: Previously noted as [AS9UNK3] this is actually the Cape Kennedy Medals 3" Apollo 9 patch, as proved by an example of the patch in CKM packaging. This example also showed that the patch is not really selvedged but has a thin tail that was sometimes trimmed.

Note that examples of this patch without the red thread in the "D" of McDivitt also exist.

Patch id:

Dallas Cap & Emblem 3" souvenir patch

Worn by crew? No. Dallas Cap & Emblem 3 inch Apollo 9 patch
Flown? No.
Manufacturer: Dallas Cap & Emblem
Distribution: Sold as sounvenirs
Dimensions: 3⅛" / 79mm
Type: Partially embroidered on blue twill. Merrowed edge without tail (selvedged).
Scarcity: Uncommon
Value: Unknown
Notes: This is Dallas Cap & Emblem 3" souvenir version of the mission patch.
Patch id:

3" souvenir patch [AS9UNK3i1]

Worn by crew? No. Apollo 9 3 inch souvenir patch
Flown? No.
Manufacturer: Unknown
Distribution: Unknown
Dimensions: 3⅛" / 79mm
Type: Partially embroidered on blue twill. Merrowed edge without tail (selvedged).
Scarcity: Unknown
Value: Minimal
Notes: This is one of several small souvenir versions (generally referred to as 3" versions) of the mission patch. This version is notable for the black "USA" text on the rocket.
